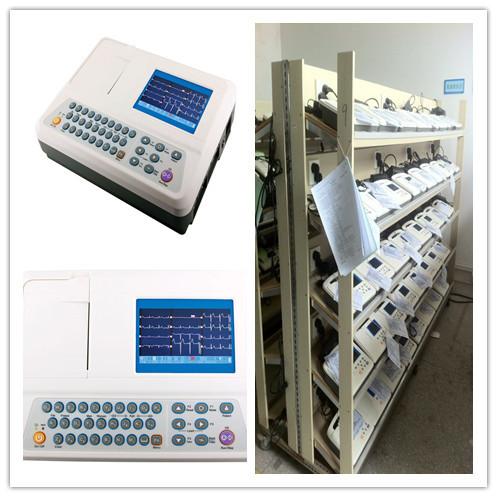

3 Channel , Manual / Auto / Analysis / Storage ECG Monitoring System With Advanced [ Freeze ] Function

Product Categories

Wuxi Biomedical Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : China

Brand Name : BIO

Model Number : ECG-3303W

MOQ : 1 unit

Delivery Time : 7 working - days since getting full payment

Payment Terms : Credit card, Paypal, T/T

Supply Ability : 500 UNITS/MONTH

Contact Now

3 Channel , Manual / Auto / Analysis / Storage ECG Monitoring System With Advanced [ Freeze ] Function

Feature

● Accurate pulse pace identification and automatic analysis function

● Working modes: Manual / Auto / Analysis/Storage

● 80mm, 3 channel format recording

● 800×480 graphic 5 inch color LCD

● 12 leads synchronously acquisition and display

● Alphanumeric keyboard for operation and input

● 250 patient cases save and replay (extendable)

● Advanced [Freeze] function

● Adapt to 110-230V, 50/60Hz power supply

● Built-in rechargeable Li-ion battery

● High resolution thermal printing

● USB/RS232 interface, ECG software is optional

● Can be connected to Network, USB Disk, Printer and Code

Scanner (Optional)

Specification

Lead	Standard 12 leads	Time constant	≥3.2s
lead acquisition	12bit/1000Hz(synchronously 12 leads)	Frequency response	0.05～160Hz(-3db)
Work mode	22 Series:Man / Auto/Analysis	Noise level	＜15μVp-p
Work mode	33 Series: Man / Auto/Analysis/Storage	Noise level	＜15μVp-p
Filter	AC Filter : 50Hz / 60Hz	Inter-channel Interference	≤0.5mm
	EMG Filter : 25Hz / 45Hz
	Anti-Drift Filter : 0.15Hz (Adaptive)
CMMR	≥100dB (with AC FILTER)	Sensitivity	5,10,20, 40, Auto (mm/mV)
Input circuit	Floating; Protection circuit against	Recording mode	3ch, 3ch+
	Defibrillator effect		Default Man. Mode is 3ch format
			Default Auto. Mode is 3ch+ format
Input Impedance	≥50MΩ	Paper speed	6.25,12.5,25,50mm/s(±3％)
Input circuit current	≤0.05μA	Paper	80mm *20m Roll paper
Patient current leakage	＜10μA	Communication	RS232/ USB port
Calibrating voltage	1mV±2％	Power Supply	AC 110-230V(±10%),50/60Hz)±1Hz),60VA
Calibrating voltage	1mV±2％	Power Supply	DC Built-in rechargeable battery,14.4V(2000mmAh)
Voltage tolerance	≥±500mV	Dimension/Weight	285mm×265mm×72mm/2.8Kg

3 Channel , Manual / Auto / Analysis / Storage ECG Monitoring System With Advanced [ Freeze ] Function
